915MHz Antenna Omnidirectional 2dBi w/ RP-SMA or SMA

$6.60
SKU:
DARS915PR
Brand:

Availability:
In stock
Weight:
0.06 LBS
Antenna 915MHz 2dBi Omni directional with articulating RP-SMA or SMA connector
Write a Review

Omnidirectional w/ RP-SMA or SMA Right-Angle (articulating)

  • Optimized for 915 MHz ISM band – Ideal for LoRaWAN, LPWAN, telemetry, industrial automation, and remote sensing applications

  • 2 dBi Omnidirectional Gain – Provides uniform signal coverage with improved performance over internal or PCB antennas

  • Flexible Mounting – Features a hinged, adjustable design for vertical or angled deployment

  • Connector Options: Choose SMA male or RP-SMA male for seamless compatibility with your device

  • Compact and Lightweight – Minimal footprint while delivering reliable field performance

SPECIFICATIONS:  915 MHz Antenna

  • Frequency Range: 902–928 MHz

  • Gain: 2 dBi

  • VSWR: ≤ 2.0

  • Radiation Pattern: Omnidirectional

  • Polarization: Linear, vertical

  • Impedance: 50 Ohms

  • Connector Types: RP-SMA male & SMA male options

  • Dimensions: 108.7 x 10 mm

  • Operating Temperature: -20°C to +65°C

  • Storage Temperature: -30°C to +75°C

  • Applications: IoT, LoRa, 915 MHz ISM band devices, telemetry, and wireless sensor networks

  • Mounting Style: Direct screw-on (antenna swivels for positioning)

  • ROHS & REACH: Antenna, cable and connector are all complaint with ROHS 3 and REACH standards.

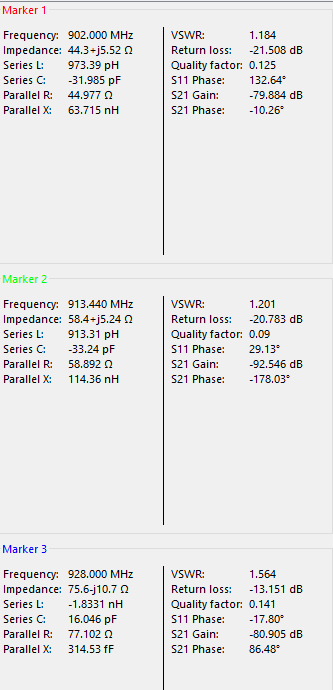

report antenna

This antenna delivers outstanding performance in the 902 to 928 MHz range, featuring excellent impedance matching, low return loss, and reliable transmission efficiency. It is ideal for applications such as IoT, LoRa, Zigbee, remote monitoring systems, and industrial communications. Its technical performance ensures stable, high-quality connectivity even in demanding environments.

RP-SMA and SMA Connector Characteristics:
  • RP SMA and SMA Connector Material Composition
  • RP SMA and SMA Features and Key Information

Dipole Antennas: 900MHz





Antenna – 915 MHz ISM Band, 2dBi Omnidirectional (SMA Male or RP-SMA Male)

The Data Alliance DARS915P is a compact, high-efficiency omnidirectional antenna specifically tuned for the 902–928 MHz ISM band, making it ideal for LoRa, IoT, telemetry, and wireless sensor network applications. Engineered with a sturdy swivel design for optimal positioning and built for direct mounting, this antenna offers a clean and practical solution for extending range and improving signal strength in sub-GHz wireless systems.

Available with your choice of SMA male or RP-SMA male connector, the ARS-915P is highly versatile and compatible with a wide range of LoRa gateways, modems, and embedded modules.

Whether you're developing a smart agriculture solution, deploying IoT nodes in the field, or enhancing the wireless range of your industrial network, the ARS-915P delivers dependable sub-GHz performance in a durable, space-efficient design.

915 MHz 2dBi Dipole Antenna:

  • LoRaWAN, Wi-Fi HaLow, Meshtastic, GSM (Global System for Mobile Communication)
  • See similar options: Right angle version (not waterproof) and 3dBi versions (not waterproof).

Compatibility with wireless standards & applications: This omni directional antenna's range of frequency band compatibility in the 860 MHz to 960 MHz frequency band range, its low broadband VSWR, and impedance matching to 50 Ohm gear, makes it suitable and compliant for all the following applications:

RELATED PAGES & PRODUCTS:

All of our antennas pass QC test before we ship them.
