Types of Antennas Used in Cellular Micro Base Stations

Micro base stations require specialized antennas to ensure efficient signal transmission, coverage, and capacity in cellular networks, particularly for 4G LTE and 5G deployments. The choice of antenna depends on factors like deployment environment, frequency bands, and network architecture.

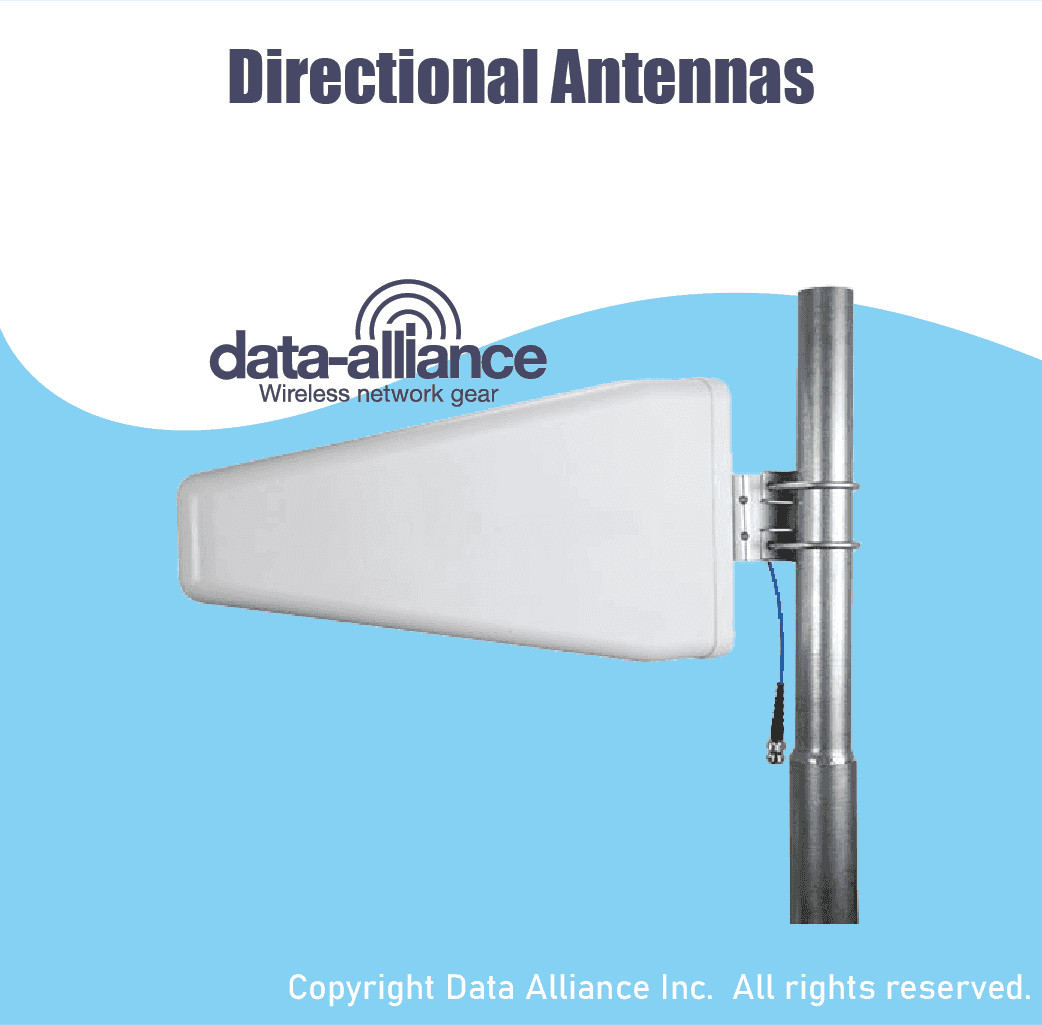

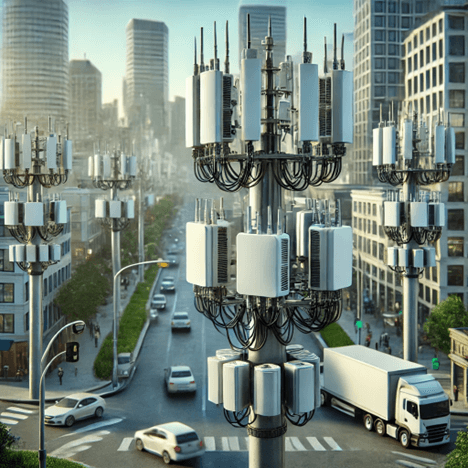

1. Panel Antennas (Directional Antennas)

Description:

• Flat, rectangular antennas designed to focus RF signals in a specific direction.
• Provide high gain (stronger signal) and extended coverage.
• Often mounted on poles, walls, or towers.

Use Cases:

• Urban deployments: Micro base stations in city streets and dense areas.
• Indoor coverage: Large buildings, stadiums, shopping malls.
• Enterprise/private networks: Corporate campuses, factories.

Examples:

• Dual-polarized panel antennas (supporting MIMO for improved performance).
• Multi-band panel antennas (for 4G/5G compatibility).

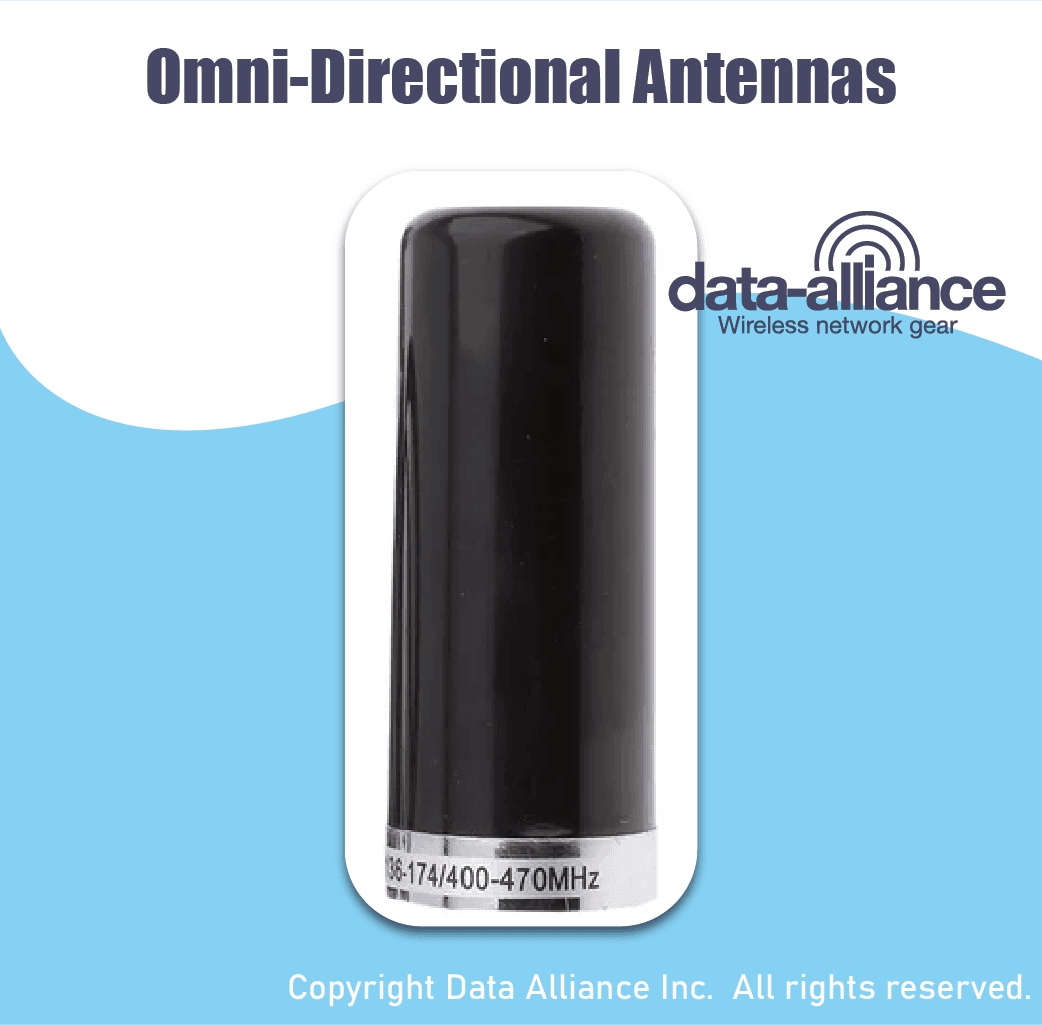

2. Omni-Directional Antennas

Description:

• Cylindrical or rod-shaped antennas that radiate signals in a 360° pattern.
• Used when uniform coverage is required.

Use Cases:

• Rural areas: Wide coverage with fewer base stations.
• Public spaces: Parks, campuses, and streets.
• Indoor environments: Distributed antenna systems (DAS).

Examples:

• Low-profile Omni antennas for urban deployments.
• High-gain Omni antennas for rural coverage.

3. Small Cell Antennas

Description:

• Compact antennas integrated with micro base stations.
• Designed for low-power, short-range coverage.

Use Cases:

• Densely populated areas: Streets, train stations, shopping malls.
• 5G network densification: Improving capacity in high-traffic zones.
• Private networks: Factories, hospitals, smart cities.

Examples:

• Integrated 5G small cell antennas for streetlamps or utility poles.
• Multi-beam antennas to improve efficiency in dense environments.

4. Massive MIMO Antennas

Description:

• Multi-input, multi-output (MIMO) antennas with multiple elements to increase data capacity.
• Used for beamforming, which improves signal strength and efficiency.

Use Cases:

• High-density urban areas with high data demand.
• Smart cities where precise signal steering is needed.
• 5G micro base stations requiring enhanced spectral efficiency.

Examples:

• 64T64R (64 transmit, 64 receive) Massive MIMO antennas for high-capacity networks.
• 32T32R MIMO antennas for mid-tier micro base stations.

5. Beamforming Antennas

Description:

• Electronically controlled antennas that direct signals toward specific users or areas.
• Essential for 5G networks, optimizing signal efficiency and reducing interference.

Use Cases:

• Urban street deployments: Targeted signal delivery in crowded locations.
• Smart transportation systems: Connecting autonomous vehicles.
• Fixed Wireless Access (FWA): High-speed internet to homes/businesses.

Examples:

• Phased-array beamforming antennas for adaptive signal direction.
• 5G mmWave antennas for ultra-fast connections in city centers.

6. mmWave (Millimeter Wave) Antennas

📡 Description:

• Designed for 5G micro base stations operating in high-frequency bands (24 GHz – 100 GHz).
• Offer ultra-high-speed data transmission but short-range coverage.

Use Cases:

• Urban microcells: Providing 5G in city centers.
• High-speed wireless backhaul: Connecting base stations to fiber networks.
• Indoor 5G: Stadiums, airports, and large venues.

Examples:

• Waveguide antennas optimized for mmWave frequencies.
• Array antennas for high-gain, low-latency performance.

7. Integrated/Embedded Antennas

Description:

• Built directly into micro base station enclosures for compact and aesthetic deployment.
• Reduce visual clutter in smart cities and urban landscapes.

Use Cases:

• Streetlight-mounted base stations: Disguised small cells.
• Indoor 5G deployments: Offices, airports, hospitals.
• Concealed telecom infrastructure: Avoiding regulatory issues.

Examples:

• Stealth antennas integrated into urban infrastructure.
• Multi-band embedded antennas supporting various frequencies.

The Micro Base Station Market relies on a mix of antenna types, depending on deployment scenarios and network needs. As 5G expands, more advanced Massive MIMO, Beamforming, and mmWave antennas will play a key role in improving cellular performance.

Using External Antennas to Improve Cellular Micro Base Station Performance

External antennas are sometimes added to cellular micro base stations to enhance range, coverage, and performance, depending on the deployment scenario. Micro base stations are designed for small cell applications, but they can benefit from external antennas in specific cases.

When Are External Antennas Added?

1. Expanding Coverage Area

• Micro base stations typically have a short range (100-500 meters), so external antennas can extend coverage in rural or suburban areas.
• Example: Adding a high-gain directional antenna can extend signal reach to cover remote buildings or large outdoor areas.

2. Improving Signal Penetration Indoors

• Small cells often struggle with penetrating walls in large buildings.
• Adding an external panel or omni-directional antenna outside the building can improve indoor coverage.

3. Enhancing Capacity with MIMO (Multiple Input, Multiple Output)

• Some micro base stations support external MIMO antennas to improve network speed and reliability.
• Example: Attaching a 4x4 MIMO external antenna enhances 5G throughput in urban environments.

4. Reducing Interference in Dense Networks

• In areas with multiple micro base stations, interference can occur.
• Using beamforming or sector antennas can help focus the signal and reduce noise from nearby cells.

5. Adapting for Different Frequency Bands

• Some micro base stations support multiple frequency bands (LTE, 5G, CBRS, private networks).
• External multi-band antennas allow switching between low-band (better range) and mid/high-band (higher capacity).

Types of External Antennas Used for Micro Base Stations

1. Omni-Directional Antennas (360° Coverage)

Best for:

• Expanding range in outdoor public spaces.
• Providing uniform coverage in shopping malls, parks, and campuses.

Example:

• 5 dBi Omni antenna to boost LTE coverage for a micro base station in a large office complex.

2. Directional Panel Antennas (Focused Coverage)

Best for:

• Extending coverage outdoors in a specific direction.
• Improving indoor signal penetration when mounted outside a building.

Example:

• 9 dBi Panel Antenna for extending 5G small cell coverage along a busy street.

3. Sector Antennas (Wide Coverage, Multiple Directions)

Best for:

• Covering large outdoor areas (stadiums, business districts).
• Reducing interference in dense urban deployments.

Example:

• 120° sector antenna to optimize small cell performance in a crowded downtown.

4. Massive MIMO Antennas (High-Capacity, 5G Ready)

Best for:

• Increasing network capacity in high-density environments.
• Supporting multiple simultaneous connections.

Example:

• 64T64R MIMO antenna for 5G micro base stations in an urban business hub.

5. mmWave Antennas (5G High-Speed Applications)

Best for:

• Boosting millimeter-wave (24 GHz – 100 GHz) performance.
• Providing high-speed, low-latency 5G services.

Example:

• Phased-array beamforming antenna for a micro base station in a stadium.

Challenges of Using External Antennas

While external antennas can improve performance, they come with challenges:

1. Regulatory Restrictions

   • Some telecom operators restrict the use of external antennas to prevent interference.

2. Signal Loss Due to Long Cable Runs

   • Using low-loss coaxial cables (LMR-400, LMR-600) is necessary to maintain signal strength.

3. Mounting & Aesthetics

   • Some city regulations limit external antennas on poles or buildings due to visual impact.

4. Power & Backhaul Considerations

   • Adding external antennas may require additional power and fiber backhaul upgrades.

Conclusion:

External antennas are often used with micro base stations to improve coverage, penetration, capacity, and efficiency.
Best scenarios for adding external antennas:

• Rural or suburban areas (range extension).
• High-density urban environments (capacity boost with MIMO or beamforming).
• Indoor deployments where penetration is weak.
