CLF-100 Coax Specifications / Characteristics. Comparison to LMR-100
Listen to article
Audio generated by DropInBlog's Blog Voice AI™ may have slight pronunciation nuances. Learn more
CLF-100 Coax Cable:

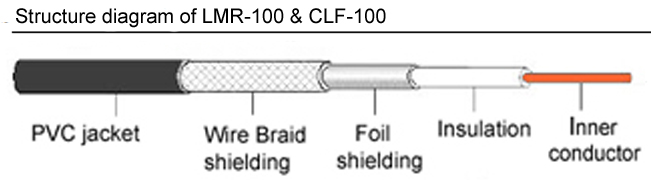

CLF-100 and LMR-100 have the same structure and shielding
CLF-100 "Low loss cable" differs from RG174 and other coax standards by double shielding, resulting in less attenuation (signal loss in the cable) than RG174 and RG178. CLF-100 is equivalent or better quality compared to LMR-100.
- Applications: Suitable for all frequency bands between 0 and 18GHz: Wireless / WiFi networks: 802.11ac, 802.11n, AC, G, A, B. 900MHz, 2.4GHz & 5GHz applications, IOT, as well as any other.
- Sheath color: black
- Flexibility is the same as LMR-100: Very flexible/easily bendable coax
- Diameter is 2.5mm.
- 50Ω (50 Ohms)
- Temperature range °C to +85°C
- Data Alliance uses LMR-100, CLF-100, LMR-200 and LMR-400 in our antenna cable products.
CLF100 is a 2.5 to 2.79 mm-thin radio frequency cable. It is double-shielded, reasonably priced, and suitable for most applications if the cable's length is short (less than 2 meters).
| 50 Ω COAXIAL CABLE | MATERIAL | DIAMETER |
|---|---|---|
| INNER CONDUCTOR | Copper Wire, solid | 0.45 mm |
| DIELECTRIC | PE | 1.52 mm |
| SHIELDING | Aluminum Foil / Tinned copper braid | 2.11 mm |
| CABLE SHEATH | PVC | 2.79 mm |
Signal loss (attenuation) at:
- 900 MHz: 0.22dB per foot | 0.72 per meter
- 2.4 GHz: 0.39dB per foot | 1.28 per meter
THE FOLLOWING CONNECTORS ARE RECOMMENDED:
BNC, TNC, RP-TNC, Type N, SMB, RP-SMA, SMA, SMC, Micro connectors such as MMCX and MCX, Lemo 00, Lemo S1, VGA, D-Sub, and many others
