L-Mount for Antennas

Stainless Steel U-bolt

If you do not choose the Ubolt option above, you get just the L-mount itself without the U-bolts, screws and pegs.

Stainless steel mounting bracket. See also our OTHER L-MOUNTS.

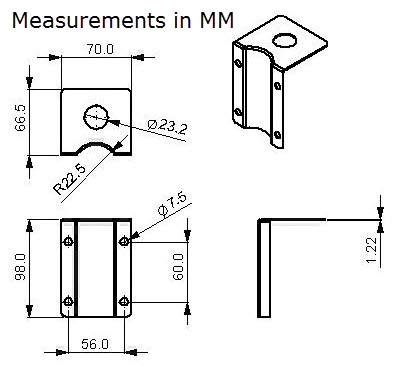

Mounting-hole on the shelf is 23.2mm (0.95 inches) in diameter. This is larger than a standard N-female connector. Some antennas with N-female connectors have an enlarged base (wider than the N-female connector) and this type of antenna fits this mount.

Of course, this mount can be used for other applications that do not involve an N-connector.

Optional stainless steel U-Bolts can be used to secure a the mount to a pole up to to 1.97-inch (50mm) outer diameter: Choose in the options above.

The optional U-Bolt kit includes:

U-bolts with threaded ends (2 U-bolts)
M6 nuts (qty 4)
Stainless Setscrews M4 and Pegs 1/4" X 1" (qty 4 each): These could be used to attach the mount to a wall.
Spring Washers 11mm (qty 4)

The part# of the compatible U-bolt kit is UBOLTS19.
