RP-SMA Extension Cable: Outdoor-Rated RG174U: 3-FT & 6.5-FT options. Male to Female

RP-SMA Extension Cable - Outdoor-Rated RG174U

RPSMA male-to-female Antenna Cable

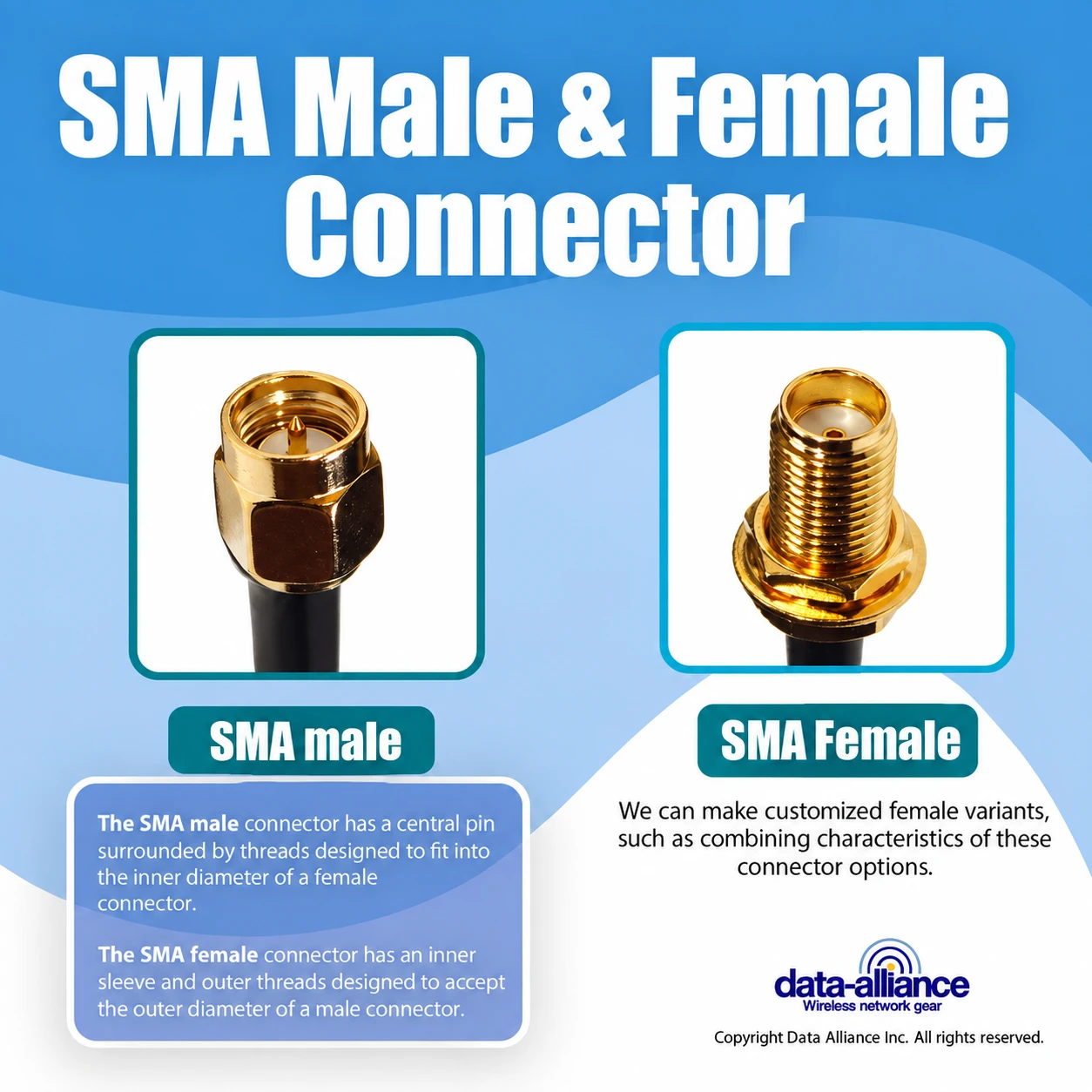

• One end has an RP SMA male connect or, and the other has an RP SMA female connector with a bulkhead nut and washer for mounting and weatherproofing.

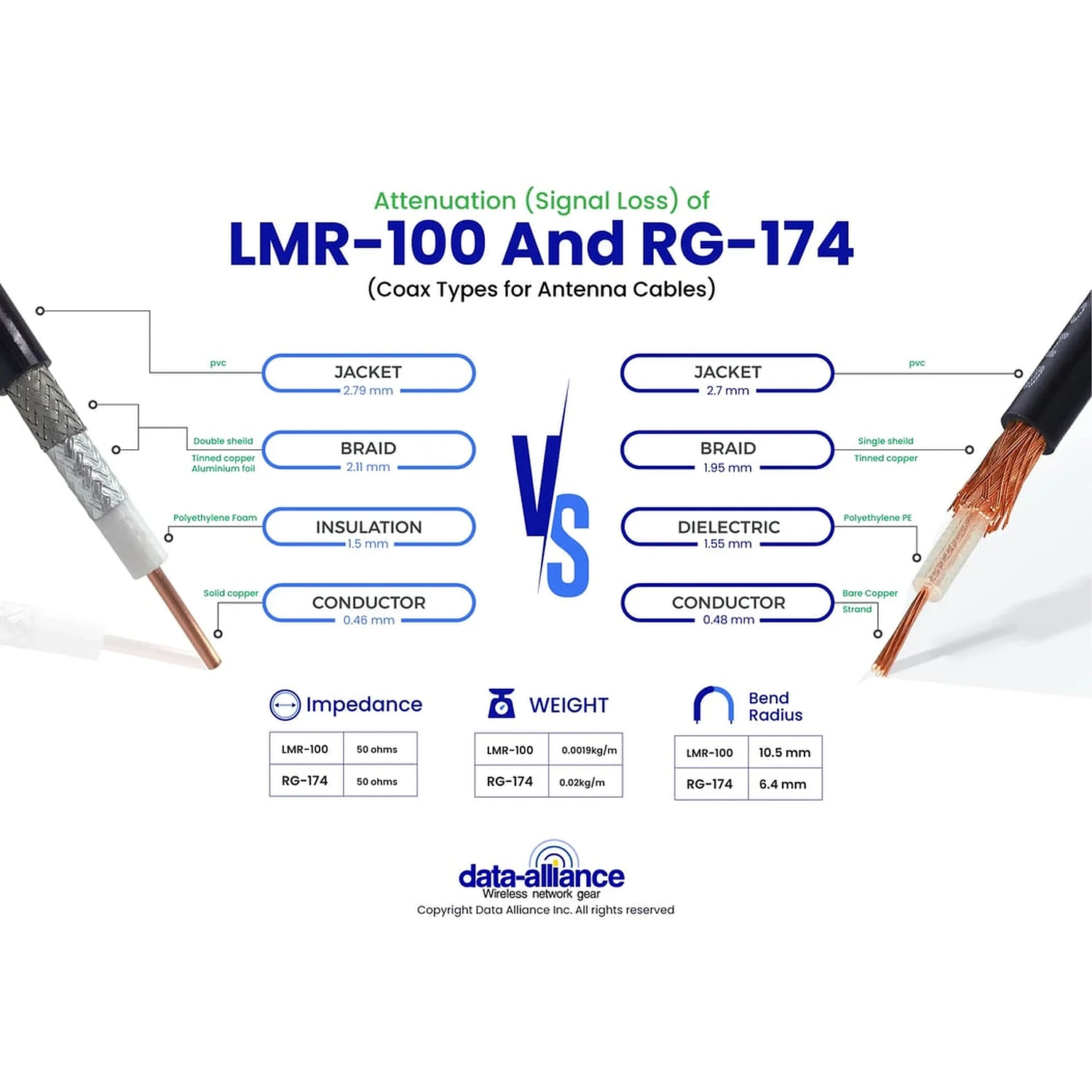

• Our cable is not only low-loss and very flexible, but it is also [specific benefits of the cable type]. The cable type is outdoor-rated RG174U.
• We offer a variety of lengths for our RP-SMA extension cables, ranging from [specific shortest length] to [specific most extended length].
• Directory of other RP-SMA cable types
• The cable length stated in the length options is between the connectors.
• The connectors are straight RP-SMA-male and straight RP-SMA female connectors with bulkhead
• Data Alliance's RP-SMA connectors are equipped with high-quality soldered terminations. This feature ensures a low-loss connection, with discontinuities kept to a minimum, thereby enhancing the cable's reliability and durability.

RP-SMA female connector includes a bulkhead nut and washer for mounting & waterproofing:

• This can be used to mount the connector (and thus the cable) on the wall of a network enclosure (to weatherproof the cable connection) or mount the connector on a case, panel, or Printed Circuit Board (PCB).
• Weatherproofing: Seal the hole where the female connector is mounted by placing an O-ring between the enclosure wall and the bulkhead nut & washer on the female connector.
• The length of our standard RP-SMA-female connector (threaded part) is 3/8 inches. We also offer a longer option, 14.5mm, with an O-ring embedded in the flange. This O-ring is crucial as it helps to waterproof the port where the cable enters a network enclosure.

• RP SMA Dimensions
• RP SMA Connector Material Composition
• RP SMA Features and Key Information

Compatibility with wireless standards & applications: Our RP-SMA extension cables' range of frequency band compatibility (from 0 to 18GHz), consistently low broadband VSWR, and impedance matching to 50 Ohm antennas and cables  makes them suitable and compliant for all the following applications:

• All WiFi standards: 2.4GHz and 5GHz applications: Wi-Fi 6, WiFi 6E, 802.11AX, 802.11AC, 802.11N, 802.11G, 802.11B, 802.11A
• Cellular Wireless LTE / 4G, GSM / 3G WiMax, 5G: Data and voice applications.
• IoT wireless, automation & M2M: Bluetooth, ZigBee, RFID, LoRa, LTE-m, NB-IoT.
• Our RP-SMA extension cables are fully compatible with all Helium miners used in North America, including popular models such as Bobcat miners and Sensecap miners. This compatibility extends to all other Helium LongFi miners, making our cables a reliable choice for these applications.

Regarding quality and compliance, our RP-SMA extension cables are second to none. They fully comply with ROHS 3 and REACH restrictions, ensuring they are free from lead content, other heavy metals, and toxic materials. This reassures you that you're investing in a product that performs well and meets the highest safety standards.

Installing our RP-SMA male-to-female extension cable is a breeze. The RP-SMA male connector effortlessly fits the jack on most WiFi routers, while the RP-SMA female connector snugly fits the male connector on antennas with an RP-SMA male connector. This means most WiFi antennas with an RP-SMA connector have a male connector. The extension cable lets you position the antenna further from the router, optimizing the line of sight. It's a simple and quick solution for improved wireless connectivity.

RELATED PAGES:

Frequently Asked Questions

What is the insertion loss for the 3 ft and 6.5 ft versions of the cable at various frequencies?

The insertion loss for the RG174U cable is approximately 1.5 dB per meter at 1 GHz. For the 3 ft (0.914 meters) cable, the loss is around 1.37 dB, and for the 6.5 ft (1.981 meters) cable, the loss is about 2.97 dB.

How does the cable's performance vary in extreme weather conditions, particularly regarding its outdoor rating?

The RG174U cable is designed to be outdoor-rated, which means it can withstand UV exposure, temperature extremes from -40°C to +80°C, and moisture, ensuring reliable performance in harsh environmental conditions.

What are the maximum voltage ratings for the RP-SMA connectors and the RG174U cable?

The RP-SMA connectors typically have a maximum voltage rating of around 335 V RMS, while the RG174U cable itself can handle voltages up to 1,400 V peak.

Can this cable be used for high-frequency applications, such as 5 GHz Wi-Fi or microwave frequencies?

Yes, the RG174U cable can be used for high-frequency applications, but with increased attenuation at higher frequencies. It is more suitable for short-distance applications at frequencies up to 18 GHz due to higher insertion loss at these frequencies.

How does the cable's shielding effectiveness compare to other coaxial cables in its class?

The RG174U cable provides moderate shielding effectiveness, typically around 40 dB. For applications requiring higher shielding, cables with double or triple shielding, like RG58 or LMR200, might be more appropriate.

What are the tensile strength and bend radius specifications for the RG174U cable?

The RG174U cable has a tensile strength of approximately 100 pounds (45 kg) and a minimum bend radius of 1 inch (2.5 cm), allowing for flexibility and durability in installation.

Are there any specific installation guidelines to ensure optimal performance of the outdoor-rated cable?

To ensure optimal performance, avoid sharp bends exceeding the minimum bend radius, secure the cable with UV-resistant ties, and use weatherproofing materials on connectors to prevent moisture ingress.

How does the dielectric material of the RG174U cable affect its performance in terms of velocity factor and signal propagation?

The RG174U cable uses a solid polyethylene dielectric, providing a velocity factor of 0.66. This affects signal propagation speed, with the signal traveling at approximately 66% of the speed of light in a vacuum, which is standard for cables in this class.
