W.FL To SMA-male Cable: 3-in 4-in 6-in 8-inch 10-in W.FL mates w/ MHF3 MHFIII Jacks

SMA-male to W.FL Cable

Antenna Cable: W.FL (MHF3) To SMA male

• One end has a W.FL connector, and the other end has a RP-SMA female bulkhead connector.
• See other W.FL (MHF3) cable options.
• Data Alliance's high-quality soldered terminations of SMA connectors provide a low-loss connection with discontinuities kept to a minimum.

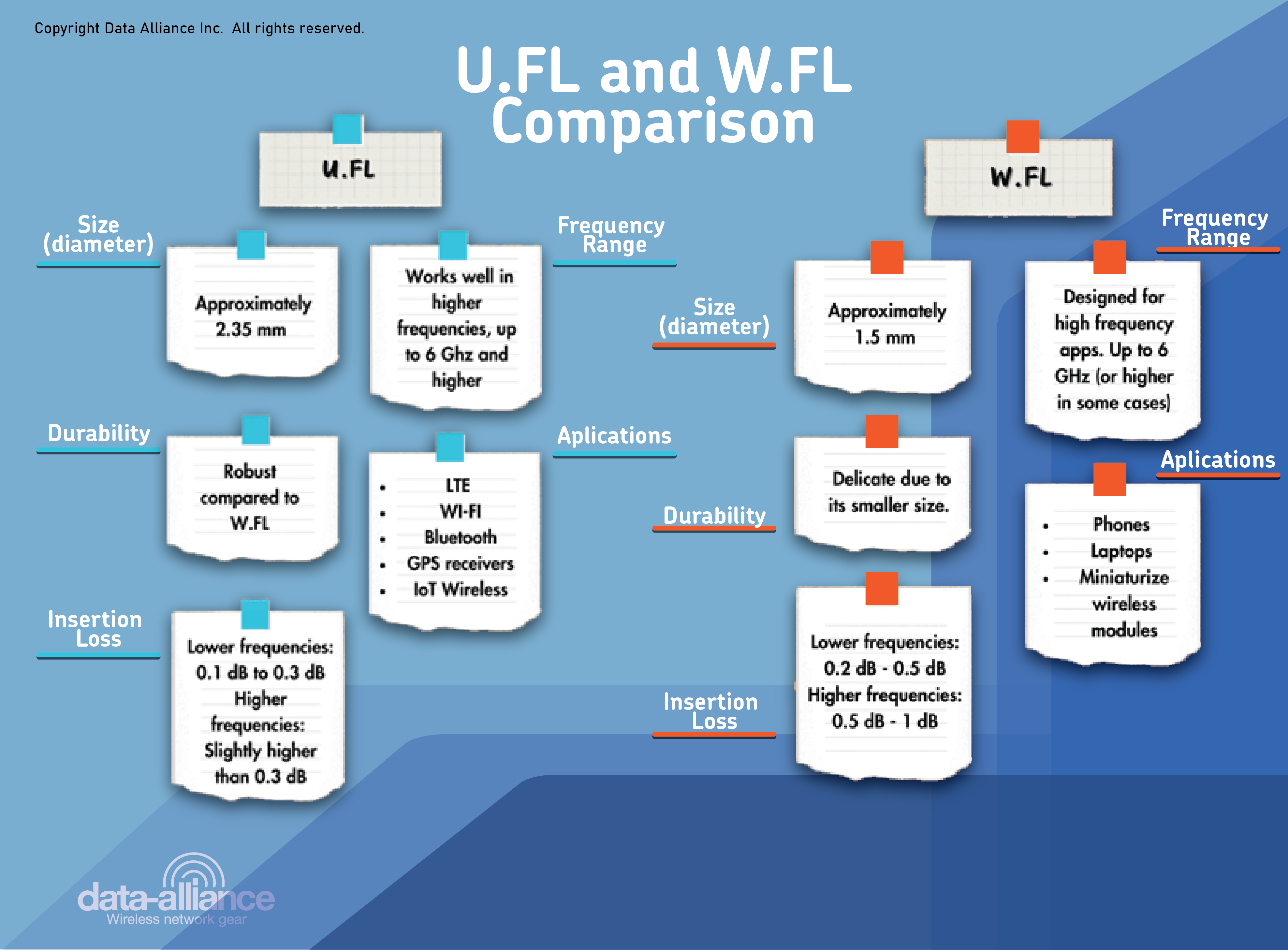

W.FL (by HiRose) is equivalent to MHF3 (MHFIII) (by I-PEX): The two are perfectly compatible (mate perfectly).

Coaxial cable type: 0.81mm mini-coaxial cable (50 Ohm): This is a very thin and flexible cable, with a black jacket. When connecting U.FL connector to a jack on a miniPCI card or board, often the tight space requires the use of 0.81mm cable, because it is very thin and flexible. The very thin cable is typically needed both because of the small size of the W.FL and MHF3 connectors, and because in tight spaces inside of enclosures, the W.FL (MHF3) connector will snap down on the jack without popping off.

This antenna cable is suitable for wireless / WiFi & WiMax networks: Wi-Fi 6, WiFi 6E, 802.11AX, 802.11N, AC, G, A, B. 900MHz, 2.4GHz & 5GHz applications, as well as any other frequency between 0 and 18GHz. See Wifi Network Standards.

SMA Connector Dimensions and Materials Composition

• SMA male connector is also called "SMA plug" and SMA-female is also called "SMA jack."
• Lead-free and ROHS compliant: The entire product is ROHS compliant (connector and antenna).
• Impedance: 50 Ohms
• Contact us for special orders.
• COMPATIBILITY:  SMA (male) connector fits items that have an SMA female jack/connector.
• GENDER DETERMINATION: Gender of SMA is counter-intuitive: The gender is referring to the pins inside-not the threads. SMA male has threads on inside.  Click here for more details regarding SMA gender determination.
